Transmisora Eléctrica del Sur
Since 2010, the Transmisora Eléctrica del Sur concession company has provided the design, financing, supply, construction, operation, and maintenance of the 220 kV Tintaya-Socabaya transmission line, the 138 kV Tintaya Nueva-Tintaya existing transmission line, and the associated substations. All of them make up a circuit length of 407 km.

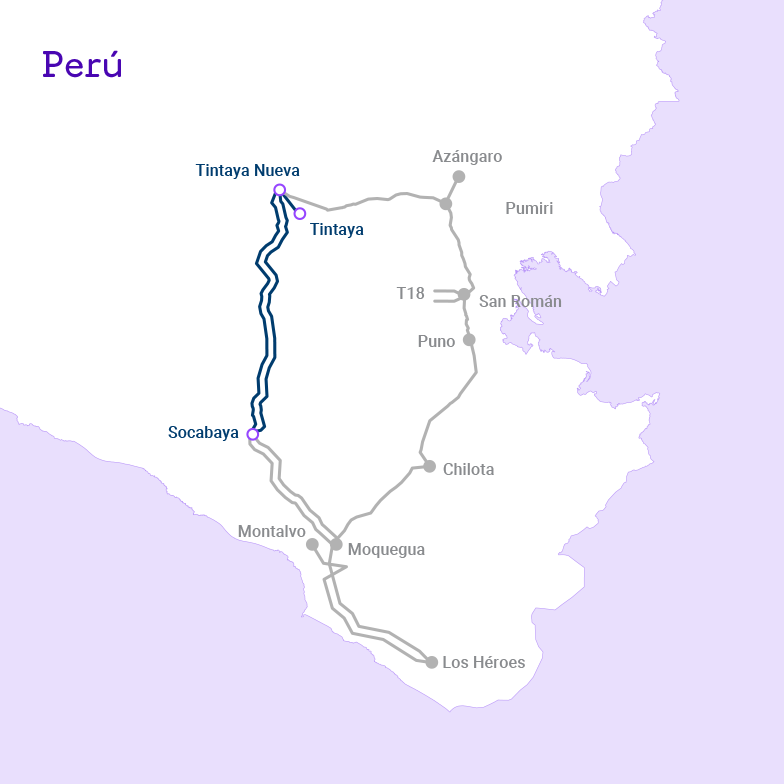

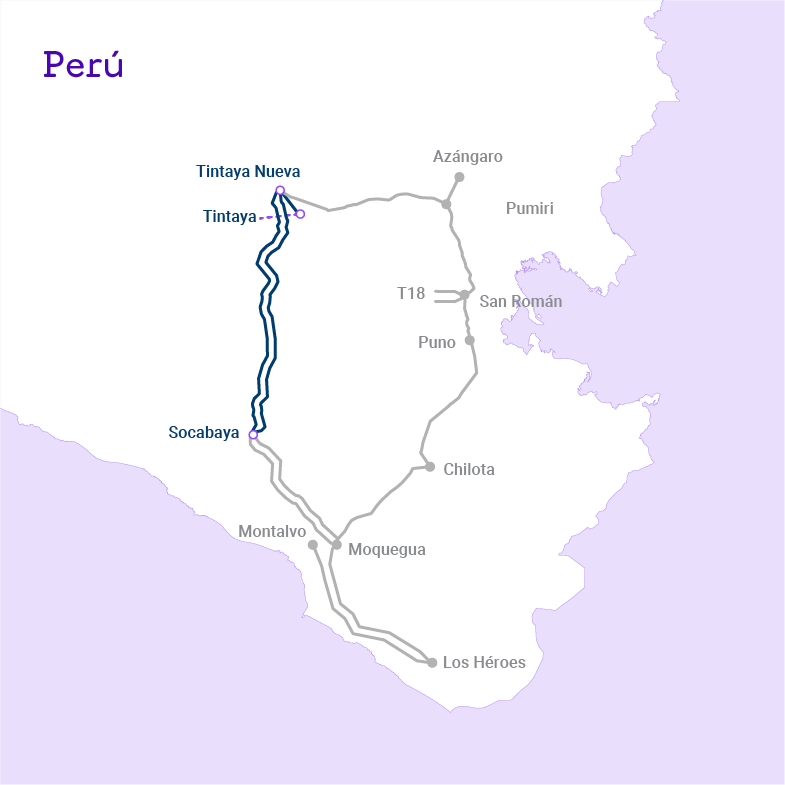

Transmission lines
- Tintaya - Socabaya Line: The line starts at the Tintaya 220kV substation, located in the Cusco region near the town of Marquiri and the Mina Tintaya, and ends at the Socabaya substation, which is located in the Arequipa region in the Socabaya District.
- Tintaya Nueva- Tintaya Existing Line: The line starts at the Tintaya 220kV substation, located in the Cusco region near the town of Marquiri, and later heads northeast towards the Existing Tintaya 138 kV substation, passing through the area of the Mina Tintaya concession. It runs parallel to the 138 kV Tintaya - Cusco line.
Substations
- Existing Socabaya 220 kV Substation (Expansion)
The busbar configuration for this substation is defined by the existing installations, which correspond to a double busbar arrangement with transfer disconnector; all of the existing line and transformer bays of Transmantaro, REDESUR and Cerro Verde have this configuration. - Tintaya 138 kV Substation (Expansion)
The busbar configuration for this substation is defined by the existing installations of R.E.P. and Xstrata-Tintaya; the design and spaces in the Tintaya 138 kV substation are a double busbar configuration. - New 220 kV Tintaya Substation
This substation interconnects hydraulic power stations, large towns, and large loads in the mining sector, so the requirements in terms of reliability, flexibility, and security are high. In addition, it is important within the Peruvian interconnected electricity system due to its geographical location. - New 138 kV Tintaya Substation
The transformer/line bay interconnects with the Tintaya existing 138 kV substation with a short line 3.2 kilometres long.
Detailed Environmental Plan for the 220 kV Tintaya – Socabaya Transmission Line and Associated Substations
In accordance with Ministerial Resolution No. 223-2010-MEM/DM, Article 6 of Legislative Decree No. 1500, and OFICIO No. 0353-2023-MINEM/DGAAE, TRANSMISORA ELECTRICA DEL SUR S.A.C. is pleased to make available to the general public the Detailed Environmental Plan (PAD) for the "220 kV Tintaya – Socabaya Transmission Line and Associated Substations." This plan has been developed to ensure compliance of undeclared components with current environmental obligations and regulations.
Project Location:
- Districts: Espinar, Callalli, Tisco, José Luis Bustamante, and Rivero, Sabandía, Socabaya, Paucarpata, and Arequipa.
- Provinces: Espinar, Caylloma, and Arequipa.
- Departments: Cusco and Arequipa.
The Detailed Environmental Plan is open for public access and can be accessed at the General Directorate of Environmental Affairs for Electricity of the Ministry of Energy and Mines, the Regional Directorate of Energy and Mines of Cusco, the Regional Environmental Authority of Arequipa and the Provincial Municipalities of Espinar, Caylloma, and Arequipa. The electronic version of the Detailed Environmental Plan can be accessed through the following web link under Register No. 3440491:
To provide your feedback, comments, or observations on the Detailed Environmental Plan, please download the Citizen Participation Form attached to this link:
Feedback, comments, or observations should be sent to the General Directorate of Environmental Affairs of Electricity of the Ministry of Energy and Mines via email at consultas_dgaae@minem.gob.pe. The deadline for submission is March 21, 2023.
Interested parties can request a copy of the Detailed Environmental Plan from the DGAAE of the MINEM in accordance with the Single Revised Text of Law No. 27806 on Transparency and Access to Public Information, approved by Supreme Decree No. 021-2019-JUS and Supreme Decree No. 164-2020-PCM. Additionally, for any inquiries you can contact participacionciudadana@rea.com.pe or call 975 540 912 from Monday to Friday, between 9:00 a.m. and 6:00 p.m.
